Manual Conical Pull Down Flange Type Zero

• Overview
• Product Description
• Packaging & Delivery
• Detailed Photos
• Test equipment
• Applications
• Packaging & Shipping
• Company Profile
• FAQ

Overview

Basic Info.

Model NO.	CP60-63T
Logo Printing	with Logo Printing
Size	Small
Customized	Non-Customized
Type	Precision translational head
Material	Metal
Certification	ISO 9001:2008, ISO 9001:2000, GS, CE
Holding Force (kN)	15
Allowable Tightening Torque (Nm)	22
Repeatability Accuracy (mm)	0.005
Unlocking Method	Manual Operation
Transport Package	Box Packaging
Specification	¢ 60*63
Trademark	SET
Origin	Made-in China
HS Code	471001
Production Capacity	5000PCS/Year

Packaging & Delivery

Package Size60.00cm * 40.00cm * 30.00cm Package Gross Weight25.000kg

Product Description

Outline dimension diagram:

Main clamping device

Size table:




SET has the most comprehensive product testing equipment and ensures that the accuracy of each component meets the strict requirements of customers through comprehensive testing.

The SET zero point positioning system is applied in various fields, replacing traditional clamping methods, saving machine time, achieving five sided machining without contour interference, and greatly improving work efficiency. The emergence and use of zero point positioning systems will lead the mechanical processing industry towards a new era.

(1) How does the zero point positioning system work?

a. The base plate of the zero positioner is installed on the CNC machining center machine tool; b. The positioning pin is installed on the reverse side of the workpiece or the reverse side of the upper tray; c. The workpiece or upper tray is directly placed in the zero positioning unit through the positioning pin; d. After cutting off the air source, the locator will lock the positioning pin to reach the locked state and start processing.

(2) What environment is the zero point positioning system suitable for?

a. SET zero positioning system is suitable for almost all processing environments, especially turning, milling, grinding, injection molding, etc., and can also be used in other harsh environments (contact with our technology is required). b. If you work in a processing environment where the temperature exceeds 80ºC, please feel free to contact our technical staff.
(3) What is the clamping force and tension force?

a. Clamping force: the force that the locking pin (SJJT) receives when it is clamped by the ball after entering the zero-point positioning unit; b. Tightening force: The maximum allowable tension of fastening bolts(JGLS).
(4) What is repeated positioning accuracy?

a. Repeat positioning accuracy: the tolerance range of the position change of reference point on the same workpiece after the reference point of workpiece record is moved from the fixture and then re clamped. It affects the consistency of a batch of parts processing, and is a very important precision index. The accuracy of the SET zero position positioner is less than 0.003mm.

(5) How to handle the iron chips or impurities entering the processing process?

a. Each SET zero point positioner has an automatic chip removal function. automatic chip removal function refers to the compressed air from the bottom of the zero positioner jet air,The air flow will blow chips, coolant or other impurities out of the center of the zero positioner.

(6) Can locating pin be installed directly on the workpiece and connected with zero locator during processing?

a. The zero locating pin can be matched with the upper pallet, or can be directly connected with the workpiece (as shown in the vise on the left), which can effectively save the investment used to manufacture the fixture.Positioning pin has many specifications, you can choose the right positioning pin according to the specifications of the workpiece to match.In order to reduce costs and improve efficiency.

(7) If I install my own zero locator, how much distance error should I keep between pin?

a. The spacing error between locating pin is kept within +/-0.01mm.

(8) Where can I get installation drawings or technical support?

a. If you need, please check the contact information on the back of the sample, we will immediately provide you with a professional answer!

Product Description

Place of Origin	China	Product name	Manual Taper Pull-down Type (flanged type)
Applicable Industries	Suitable for mold processing and assembly field Suitable for quickly adjust the center distance of the positioner	Size number	C63T
Weight (KG)	1.4	Model	CP40-40T CP80-80T
Showroom Location	Suzhou, China	Material	Hardened stainless stee
Video outgoing-inspection	Provided	Color	Silver white
Machinery Test Report	Provided	Clamping force (KN)	15
Marketing Type	Hot Product 2024	Maximum operating torque (Nm)	22
Warranty	1 Year	Repeatability accuracy (mm)	<0.005
Brand Name	SET	Usage	Metal or non-metal cutting /Mold processing field

Packaging & Delivery

Package Size	60.00cm * 40.00cm * 30.00cm
Package Gross Weight	25.000kg

Detailed Photos

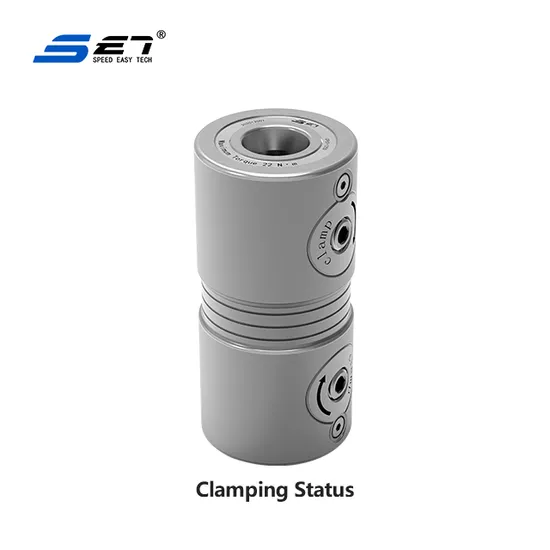

	Manual unlocking and clamping
	Material: Hardened stainless steel
	Repeated positioning accuracy < 0.005mm
	High gripping force

Order Number	Size no.	Unlock method	Holding force (KN)	Allowable tightening torque (Nm)	Weight (kg)
CP40-40T	C40T	Manual	8	8	2
CP60-63T	C60T	Manual	15	22	1.4
CP80-80T	C80T	Manual	25	50	5.8

Size no.	DN	D1	ØD2	D3	H (±0.01)	H1	H2	H3	L	d	W
C40T	46	40	12	65	40	20	22	10	50	9	4
C63T	69	60	18	95	63	30	32	15	75	13	6
C80T	91	80	22	130	80	40	44	20	100	17	8

Test equipment

Applications

Packaging & Shipping

Company Profile

Suzhou Suyide Industrial Equipment System Co., Ltd. was established in 2016 and is a high-tech enterprise. The company mainly focuses on research and development, production, sales, design and production of zero point positioning systems, fixtures, and non-standard fixtures. The SET zero point locator can achieve fast clamping, eliminating the need for adjustment and inspection procedures. Surface and piston hardening treatment, repeated positioning accuracy < 0.005mm, with extremely strong production capacity and excellent quality. It involves multiple fields: aerospace, automation production, laser intelligent manufacturing, automotive manufacturing, and machine tool manufacturers. The business areas are also very extensive: various parts of China, Taiwan, Europe, North America, Africa, South America, etc. Therefore, in just a few years of development, we have won unanimous praise from both the industry and outside the industry! Since its establishment, the company has provided our customers with "one-stop services": technical solutions in the early stage, processing of raw materials, processing of workpieces, assembly, transportation, installation, and after-sales service. Ensure that customers have no worries during use. We always adhere to the principle of striving for excellence in quality and perfect after-sales service. We have a high-quality management and technical team, advanced processing equipment, precision inspection equipment, perfect processing technology, professional manufacturing technology, and strict on-site management. Our company is wise and innovative, always adhering to the principles of innovation, integrity, and customer first.
