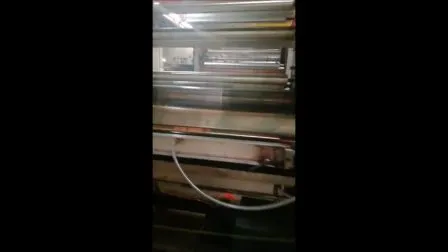

Stack Type Plastic Flexo Film Printing Machine High Speed Auto Register System

Basic Info.

Model NO.	Osun
Printing Color	8 Colors
Anilox Roller	Ceramic Anilox Roller
Dryer	UV& IR
Type	Flexography
Embossing Structure	Platen Press
Structure	Stacked
Application	Flexible Packaging Printing
Automatic Grade	Automatic
Printing Speed	150m/mim
Transport Package	PE Stretch Film and Wood Pallets
Specification	Customizable
Trademark	OSUN
Origin	Xi′an City, China.
HS Code	8443160090
Production Capacity	100 Sets/Year

Product Description

Stack Film Printing Press

This stack flexo press is an ideal machine for plastic film printing. The main advantages of this machine are great speed and great printing quality, it requires no large area due to it's compact design. The price is much lower than CI Flexo film printing machine.

Major performance

Q: Are you a trading company or manufacturer?
A: We are a professional manufacturer with over 15 years of experience in printing and packaging machinery. All machines are produced in our own factory located in Qingdao, China.

Q: What types of printing machines do you offer?
A: We provide a full range of printing and packaging equipment, including flexographic printing machines, slitting machines, die cutting machines, pouch making machines. One-stop solution for your printing needs.

Q: How do you ensure the quality of your machines?
A: All key components are from world-renowned brands like B&R, Fuji,Alpha etc. Every machine undergoes strict quality inspection and test printing before shipment.

Q: Do you provide installation and training?
A: Yes. We send experienced engineers to your factory for installation, commissioning, and operator training. Online support is also available anytime.

Q: Can the machine be customized according to our needs?
A: Yes. We offer customized solutions based on your printing material, layout, and production requirements.

Q: How do you support after-sales service?
A: Our service team provides lifelong technical support. For overseas customers, we offer video guidance, online troubleshooting, and can dispatch engineers if necessary.

Q: Can I visit your factory?
A: Absolutely! You're welcome to visit our factory in Qingdao anytime. We can also arrange a video call or online factory tour if travel is inconvenient.

Printing color	1~8color	1~8color	1~8color
Printing width	600mm~1600mm	600mm~1600mm	600mm~1600mm
Highest machine speed	90m/min	130m/min	180m/min
Highest printing speed	80m/min	110m/min	150m/min
Printing length (repeat)	190 ~ 889mm (7.5"~ 35")	190 ~ 889mm (7.5"~ 35")	254 ~ 889mm (10"~ 35")
Trapping roller	Machinery control	Machinery control	Pneumatic control
Register precision	±0.25mm	±0.20mm	±0.15mm
Register mode	Machinery- driven	Machinery- driven	Motor-driven
Driven mode	Helical gear	Helical gear	VOGEL gearbox
Unwind reel diameter	Φ600mm	Φ600mm	Φ800mm
Rewind reel diameter	Φ600mm	Φ800mm	Φ800mm
Ink pump	Non	Single way diaphragm pump	Two way diaphragm pump
Anilox roller	Ceramic anilox roller	Ceramic anilox roller	Ceramic anilox roller
Doctor blade/Plastic roller	Plastic roller	Single side type	Double side enclosed type
Tension scope	3 ~ 50kg	3 ~ 50kg	3 ~ 50kg
Tension precision	±0.3kg	±0.3kg	±0.2kg
Unwind and rewind core	Φ76mm	Φ76mm	Φ76mm
Deviation correction system	Auto hydraulic pressure	Auto servo pressure	Auto servo pressure
Frame thickness	75mm	75mm	75mm
Printing plate lifting system	pneumatic press control	Auto hydraulic pressure	Auto hydraulic pressure
Master motor power	7.5Kw	11Kw	18Kw
Rewinding motor	2.2Kw	5.5Kw servo motor	7.5Kw servo motor
Unwinding motor	NO.	NO.	7.5Kw servo motor
Blower of heater	4.5Kw	4.5Kw	7.5Kw
Drying power	26Kw	32Kw	45 Kw
Blower of nature wind	1.1 Kw	1.5 Kw	1.5Kw
Powder brakes	Japan Mitsubishi 5KG	Japan Mitsubishi 10KG	NO.
Powder clutch	Japan Mitsubishi 5KG	NO.	NO.
Tension control	China TC818	Japan Mitsubishi / PLC+ dancing rollers	PLC+ dancing rollers
Unidirectional bearing	Germany	Germany	Germany
Total power	42Kw	55Kw	85KW
Outline size	4.8m×2.85m×3.0m	5.0m×2.85m×3.2m	6.5m×3.56m×3.6m
Total weight	6260KG	7480KG	10950 KG
